VehicleEye DashCam Footage

---

Hardware Specifications

Processor - Hi3516CV610-20S

Image Sensor - GC4653 and back AHD1080P

Lens - Six sets of all-glass lenses

Screen - 3.19 inch

Aperture - F1.8

Viewing Angle - 120°wide angle

Recording Resolution - 4K（3840*2160）

Video Resolution - Support dual recording 2560*1440 30 fps & 1920*1080 25 fps

− support signal recording：3840*2160 30fps

Video Frames - H.264/H.265/MP4

Effective Pixels - Signam 8MP/ Front 4MP+ back 2MP

Picture Format - JPEG

Collision Sensor - Three-axis Acceleration Sensor

Recording Mode - Loop Recording without Missing a second

Storage - TF card Supplied with 128gb Micro SD With Adapter

Startup Time - 3 Seconds

Working Voltage - 12V DC 280mA

Quiescent Current - below 1mA

Storage Temp (℃) -（-30℃-80℃）

Operation Temp (℃) - (-15℃-75℃）

Operation Humity（℃ ) - 15%-60%RH

Wide Voltage Adaptation - Adapt to the in-vehicle power supply environment（5V/12V）

Software Specifications

English Voice Control - Supported

Power-off Video Saving - Support（To repair the video when power on）

Time Synchronisation Reminder - Support

Parking monitoring - Support（Protection Power 11.8V）

GPS - Yes Built in GPS function Support

Application Details

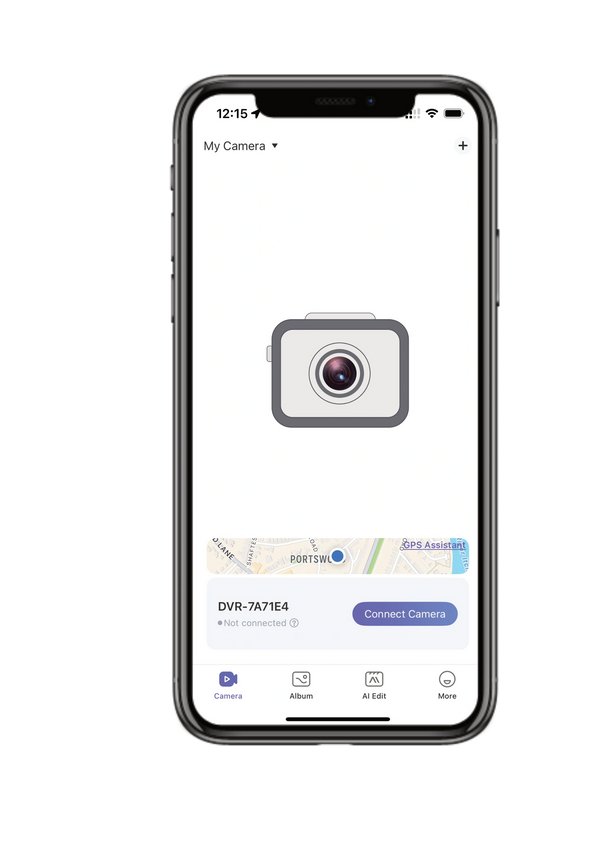

Add Device

Supports the addition and removal of multiple devices, select the device you want to connect this time, and view the device's historical connection information.

Real-time Preview

You can view the device's real-time image through the Wi-Fi local area network.

Online Playback

You can replay the videos within the device online without downloading to the phone, so as to select important videos for download and sharing.

One-click Photo

Take photos of the preview or real-time playback images and save them to your phone.

File Download

Browse files on the device and support multiple file downloads.
